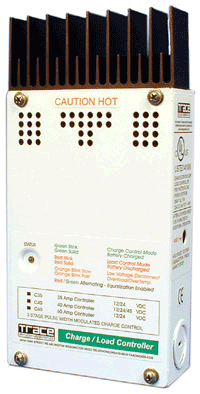

For use in Battery-Based systems, these rugged charge controllers offer protection against overcharging when used with our wind turbines.  The Xantrex C60 is capable of handling charging currents of 60A, and is suitable for use with battery banks of 12V and 24V only.
In order to use either of these controllers with your Turbine and Battery Bank, you will require a suitable dump load for connection to the C60.  These dump loads are shown below, and can be bought separately if required.

The following number of dump loads are required with each of the following battery voltages.
For 12V systems use only the C60 and 2 Dump Loads (in parallel)
For 24V systems use only the C60 and 1 Dump Load
The C60 C-Series controllers can be used with 12-volt, or 24-volt DC systems (depending upon model) as a Charge Controller or a Load Controller.

Numerous features are provided standard to maximize the performance of the system:

Multi color LED with easy to read mode/status label.

Electronic overload and short-circuit protection with automatic and manual reset capability increases the reliability of unattended systems by eliminating blown fuses and tripped circuit breakers.

Adjustment of charge setpoints is provided by rotary controls (potentiometers) with removable knobs.

Calibrated scales and test points allow precise adjustments of settings.

Protection of the electronic circuitry when used in hot environments, over 113F/45 C.

2-year limited warranty

Visit our Eco-MarketPlace for convenient online purchasing....

Click Here

---

DUMP LOAD - €157,33
For use with the Xantrex charge controllers above, this dump load is effectively a very high power air heating element.  The C60 charge controllers are used in 'Load Diversion' mode, and as such, they dissipate any unwanted power into these dump loads when your battery bank becomes fully charged.  It is vital to use a charge controller to prevent damage to your batteries, especially if you leave your system unattended for long periods of time, and without loading your batteries with an inverter, or other suitable device.
These dump loads should be mounted as close as possible to your C60 charge controller.  They should be mounted in free circulating air, and not in an enclosed space.  The power connection blocks are made of solid brass, and all cabling used should be securely connected using the bolts provided.  Please ensure that you choose the correct number of dump loads for the battery bank voltage you are charging.
See above for details.
